Laser Scanning for Townhomes & Brownstones
Accurate documentation for historic rowhouse architecture
Townhomes and brownstones across the Northeast share a rich architectural legacy — but they also present unique documentation challenges. Layered renovations, dense ornamentation, aging construction, and limited access demand a careful, precise approach to existing conditions documentation.
MYND Workshop specializes in laser scanning, Scan-to-BIM, and architectural documentation for historic townhomes and brownstones, with deep experience in the classic rowhouse architecture found throughout Brooklyn, Harlem & Manhattan, The Bronx, Albany, and the Hudson Valley, as well as similar historic neighborhoods across the Northeast.
Scanning in Brooklyn Heights, Brooklyn, New York
Experience with classic brownstone and rowhouse typologies
Rowhouses and brownstones often feature repeating structural patterns combined with highly individualized details. Typical conditions include:
Ornate façades and stoops
Decorative cornices, lintels, and window surrounds
Interior plasterwork, crown mouldings, and baseboards
Narrow floor plates and stacked layouts
Partial or undocumented alterations over time
Our documentation approach is tailored to capture both overall building geometry and fine architectural detail, providing a reliable foundation for renovation, restoration, and preservation work.

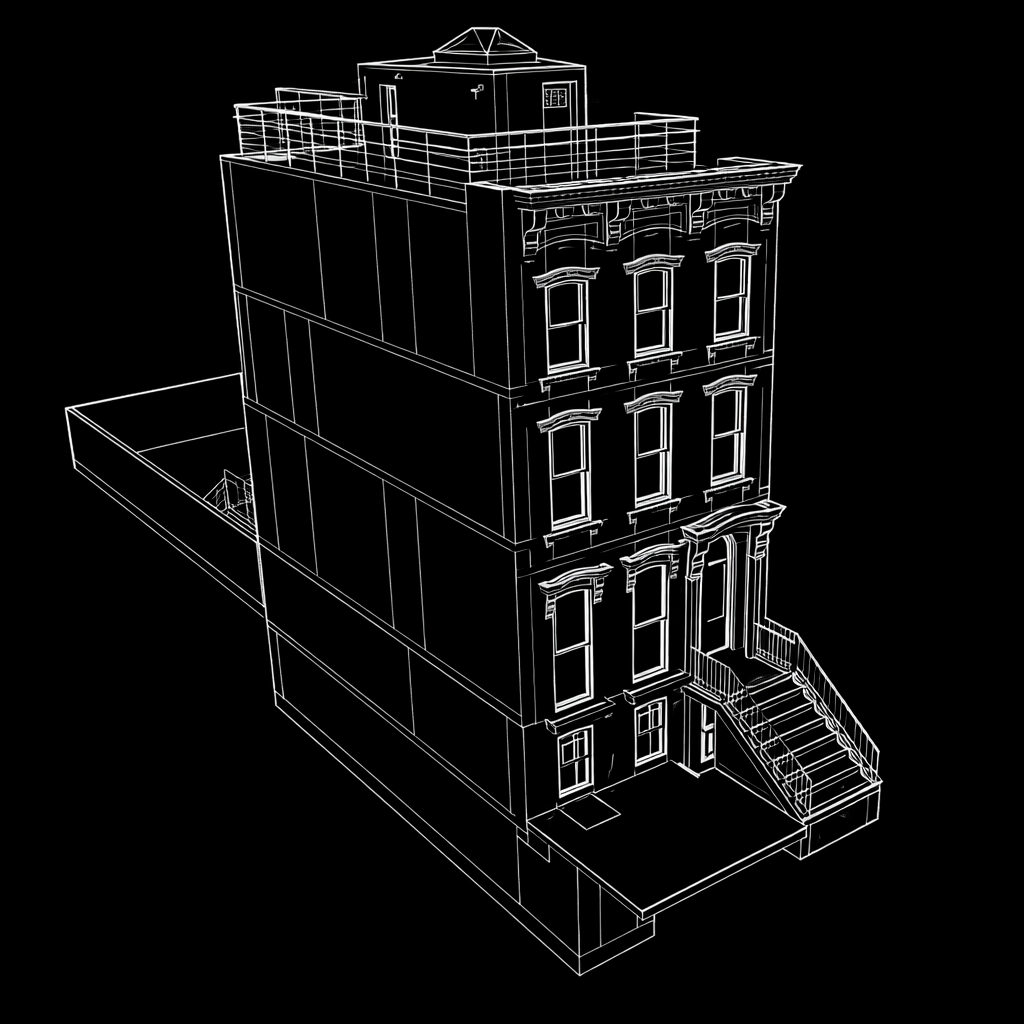

Brooklyn Heights Brownstone BIM Model

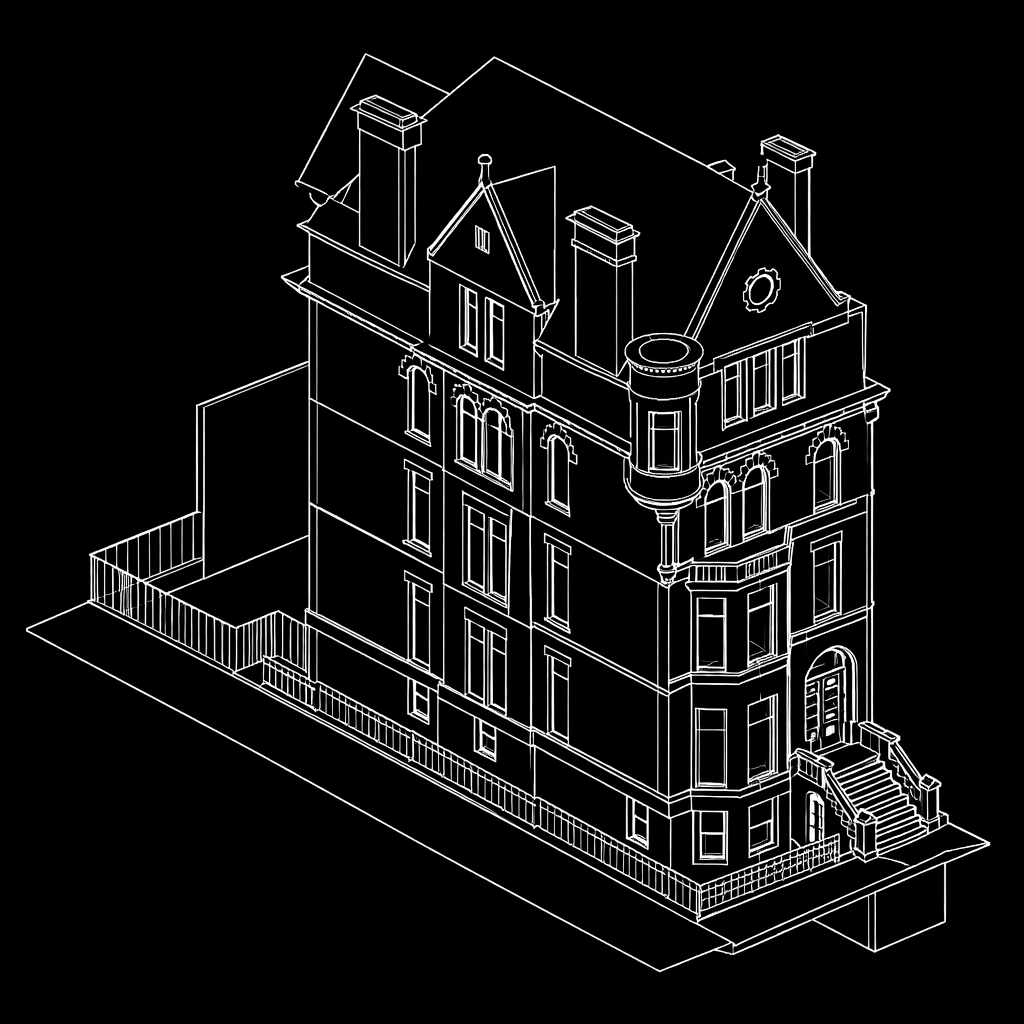

Harlem Brownstone BIM Model
Scan-to-BIM with a focus on architectural detail
We regularly develop Revit-based Scan-to-BIM models for townhomes and brownstones, with scope and level of detail adapted to project needs. This often includes:
Accurate floor-to-floor geometry and wall alignment
Detailed modeling of staircases and circulation

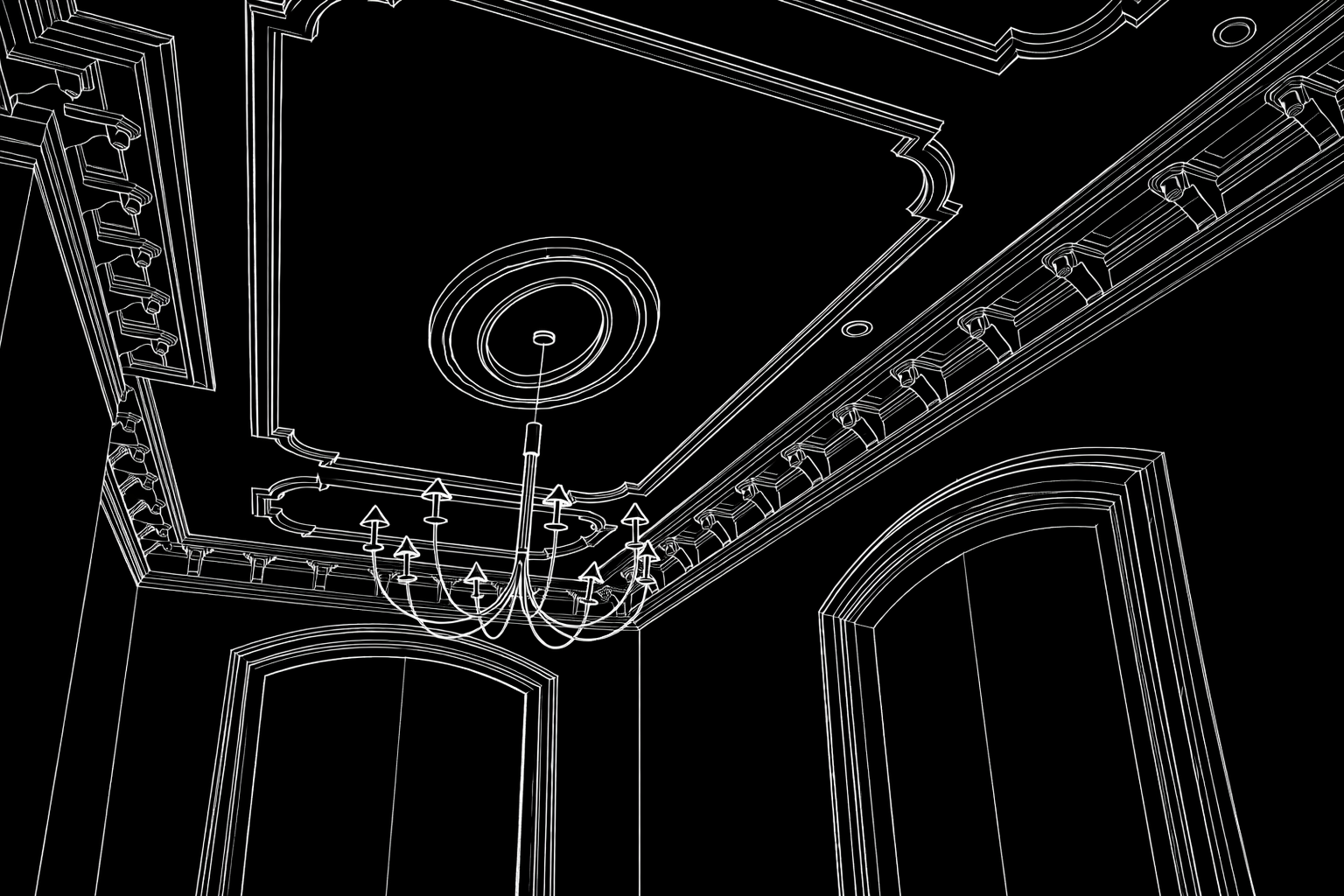

Representation of decorative interior and exterior elements when required
Clean, well-organized models suitable for renovation workflows
Models can be exported to IFC, DWG, and other common formats for use in platforms such as Archicad and additional downstream tools.
In many cases, a 3D model-based approach proves more cost-effective than purely 2D CAD, particularly when multiple drawing types are required.
High-quality orthographic photography for analysis and restoration
In addition to LiDAR scanning, we provide high-resolution orthographic photography of façades and architectural details. These images are especially valuable for:
Preservation analysis
Façade and ornament restoration planning
Condition assessment and material studies
Coordination between architects, conservators, and fabricators
Orthographic imagery can be aligned with scan data or drawings, providing accurate visual reference for both design and documentation.

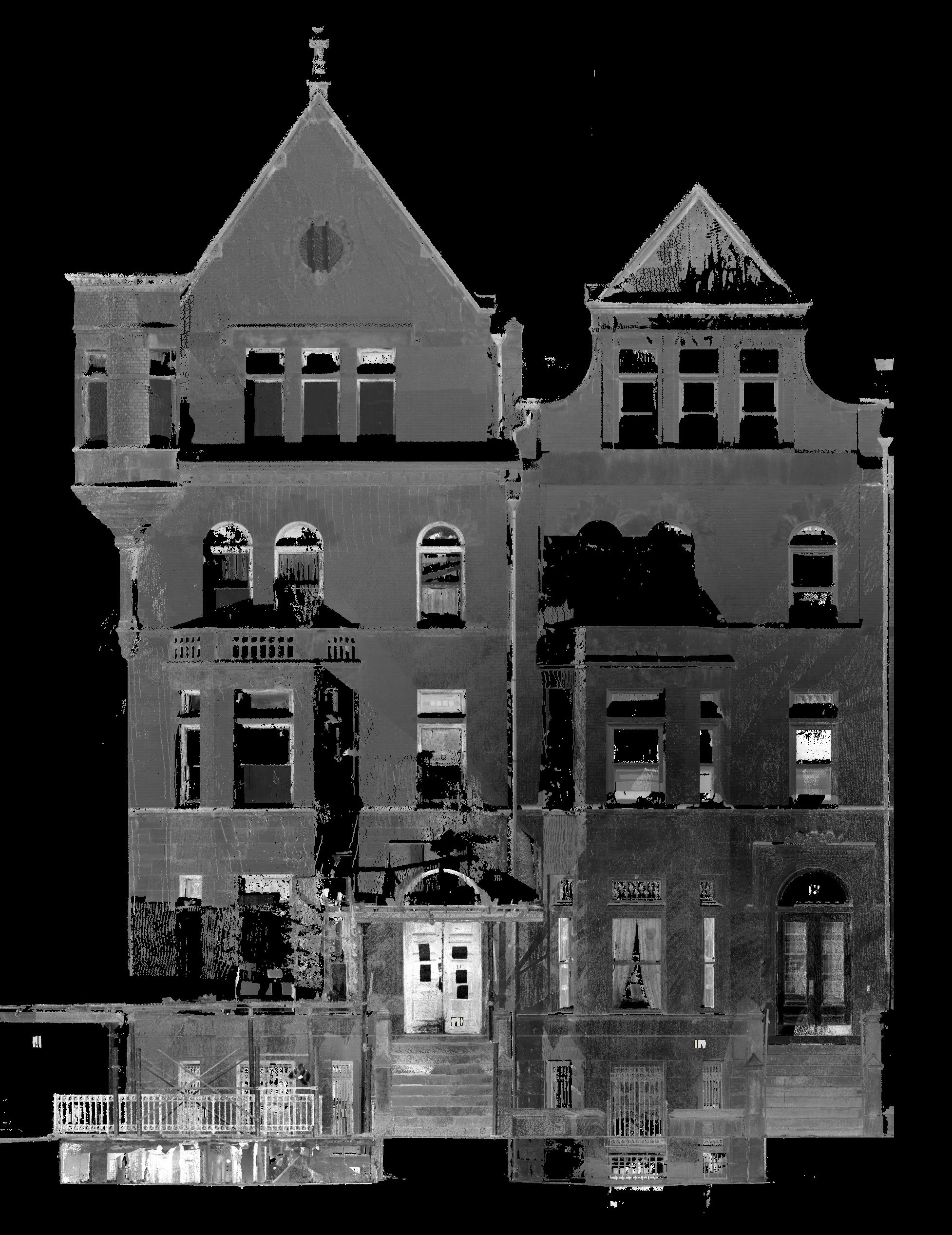

Orthophoto

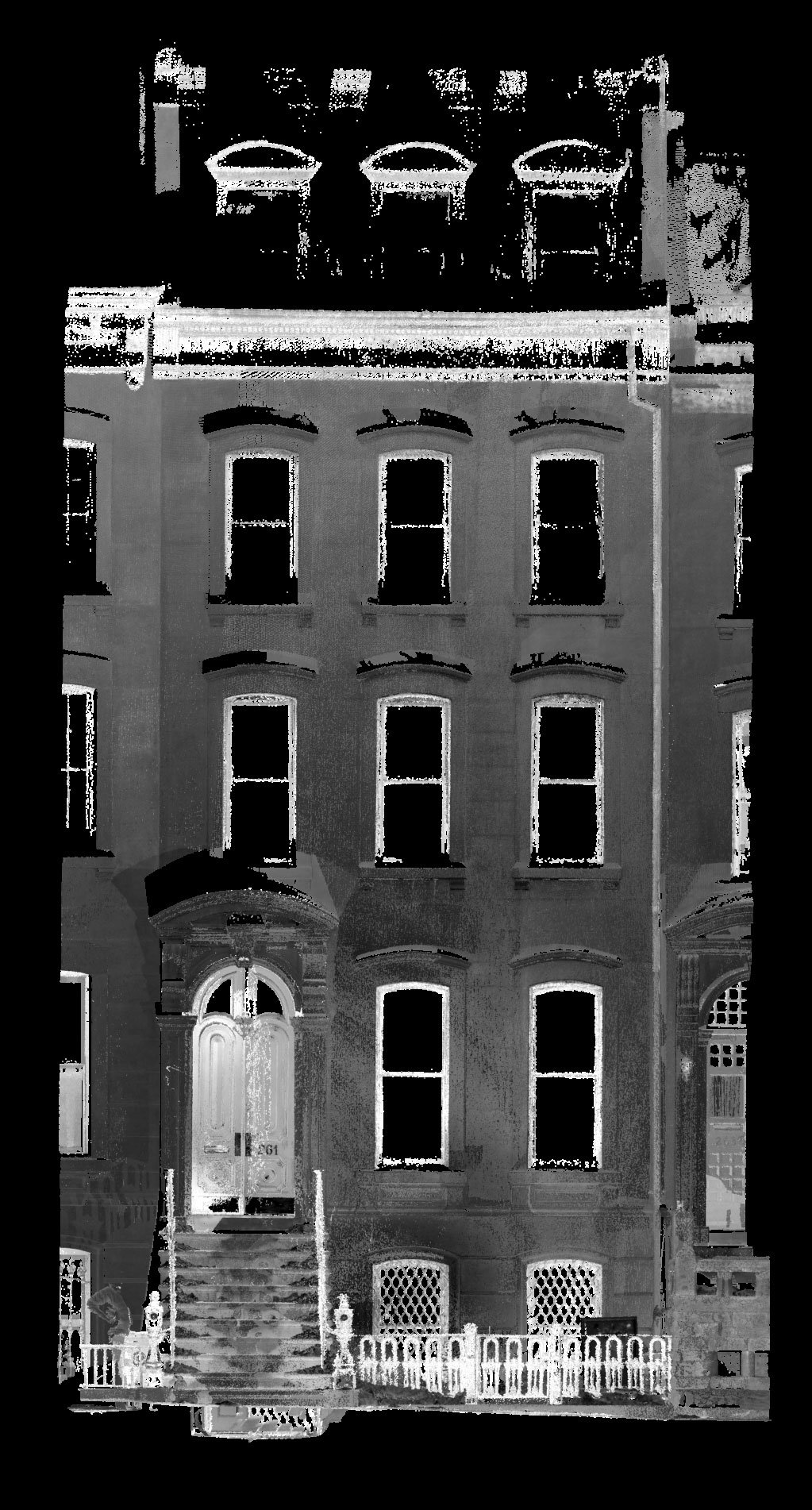

Orthophoto
Comprehensive 2D drawing deliverables
From scan data or BIM models, we routinely produce a full range of 2D architectural drawings, including:
Floor plans
Exterior and interior elevations
Building sections
Reflected ceiling plans
Detail views as required
We are comfortable adapting deliverables to client-specific templates and standards, ensuring that documentation integrates smoothly into existing workflows.

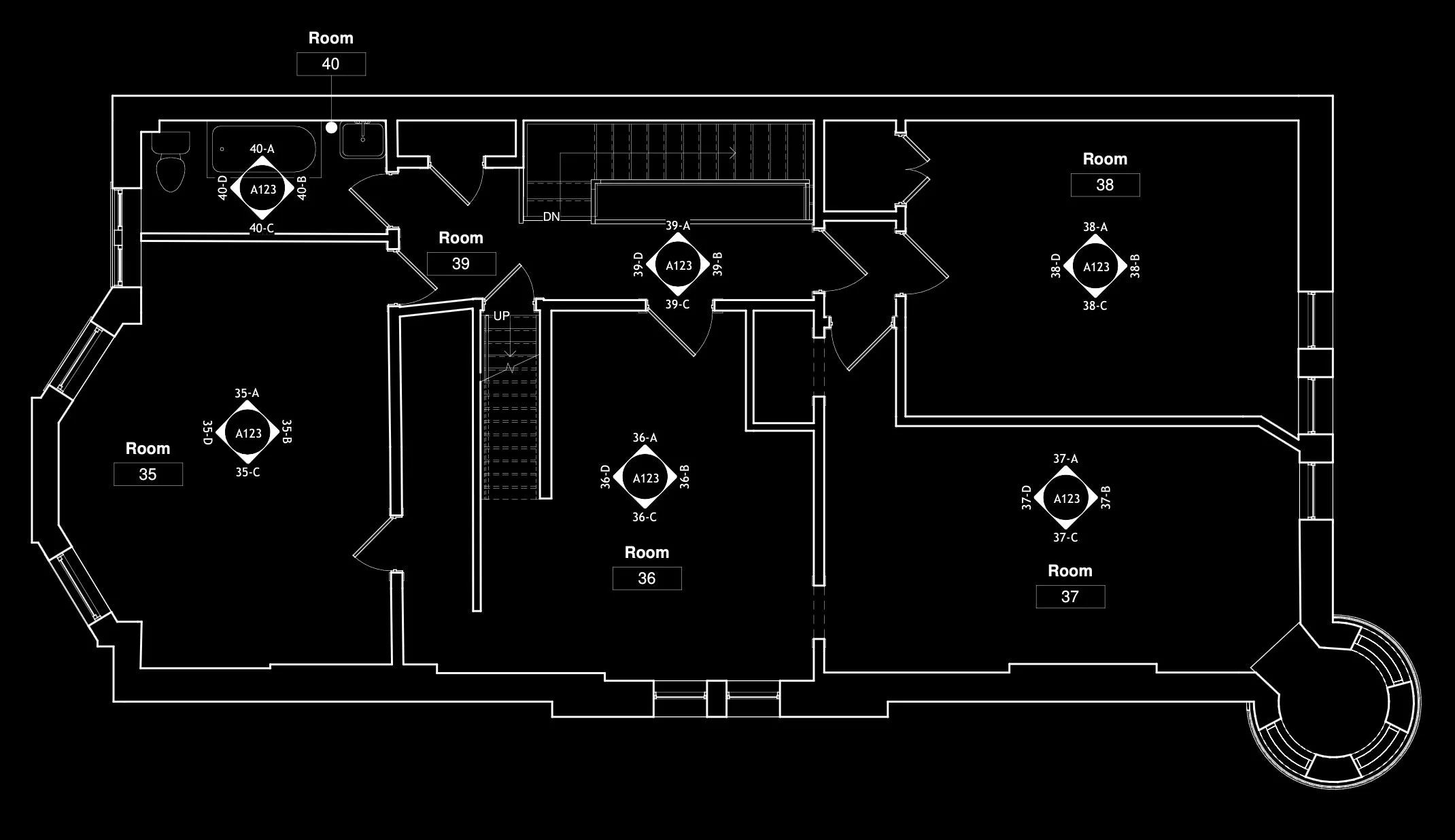

Typical Brownstone 2D CAD As-Built Floorplan

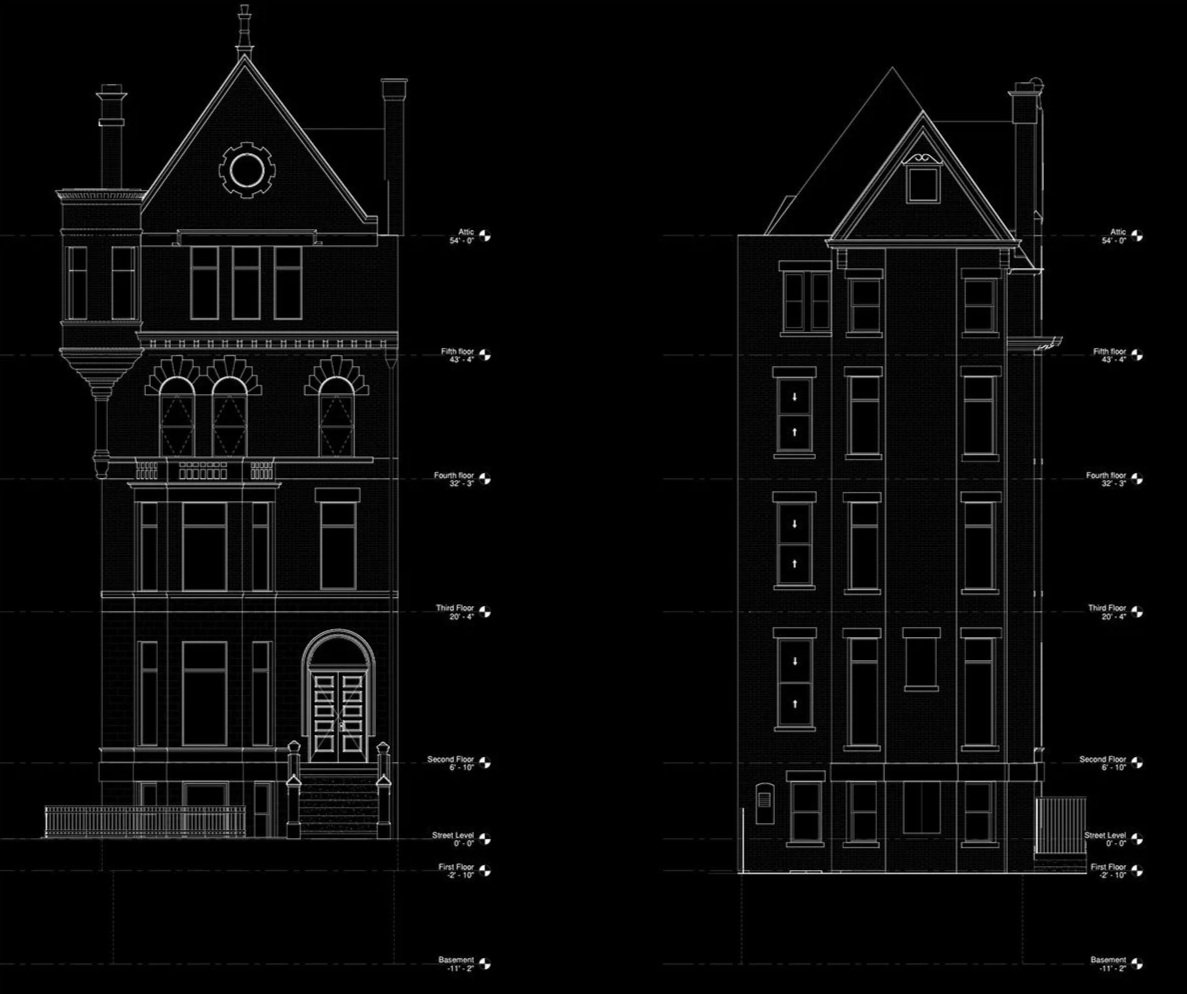

Harlem Brownstone 2D CAD Exterior Elevations
A practical approach to complex residential projects
Townhome and brownstone projects often involve tight access, active occupancy, and phased renovation planning. We work closely with architects, owners, and consultants to define a documentation strategy that balances accuracy, scope, and budget — without overcomplicating the process.
If you’re planning renovation, restoration, or preservation work on a historic townhome or brownstone, we’re happy to discuss documentation needs early in the process.

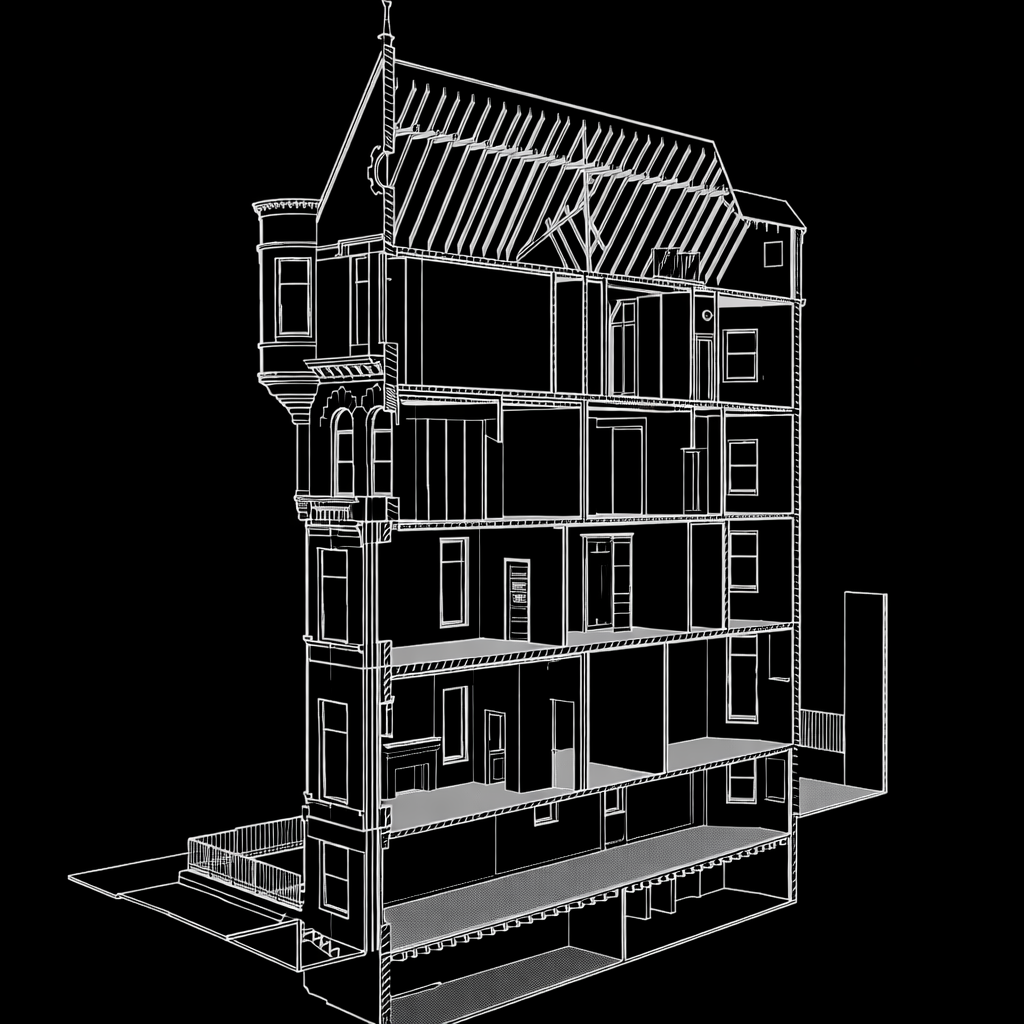

Section Cut through 3D Revit Model of Harlem Brownstone
