3D Scanning the Spire at Larchmont Ave Church

In the picturesque town of Larchmont, NY, the iconic Larchmont Avenue Church spire, known for its architectural beauty and historical significance, faced challenges due to structural leaning and damage. Recognizing the need for a precise and innovative solution, MYND Workshop was tasked with capturing the intricate details of the spire to aid in its restoration.

Drone photogrammetry photo of church spire

Drone photogrammetry photo of church spire

Using a terrestrial laser scanner to capture the spire geometry from below

Using a terrestrial laser scanner to capture the spire geometry from below


Leveraging the cutting-edge technology of LiDAR and drone photogrammetry, our team embarked on a meticulous scanning process. The use of drones allowed us to navigate the complex angles and heights of the spire, ensuring comprehensive coverage and accuracy in data collection. The resulting scans provided an unprecedented level of detail, capturing every nuance of the spire's architecture.

Drone photogrammetry photo of church spire

Drone photogrammetry photo of church spire

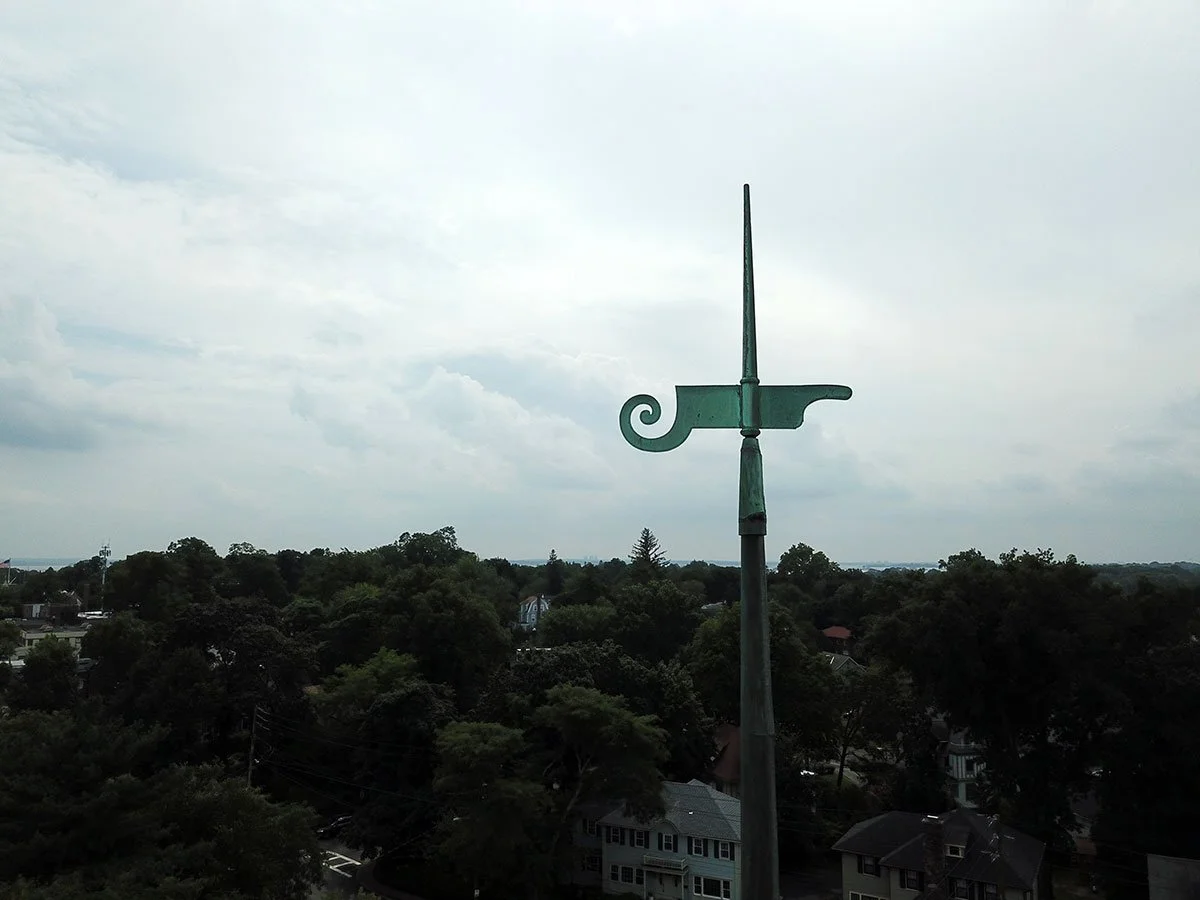

Drone photogrammetry photo of church spire (top)

Drone photogrammetry photo of church spire (top)


The challenge did not end with data collection. Our skilled 3D artists undertook the intricate task of reconstructing the spire's geometry from the collected data. This step was crucial, as it involved not only correcting the lean but also meticulously restoring the damaged sections to their original glory. The final deliverable was a highly detailed 3D model that served as an invaluable tool for the fabricators tasked with the spire's reconstruction.

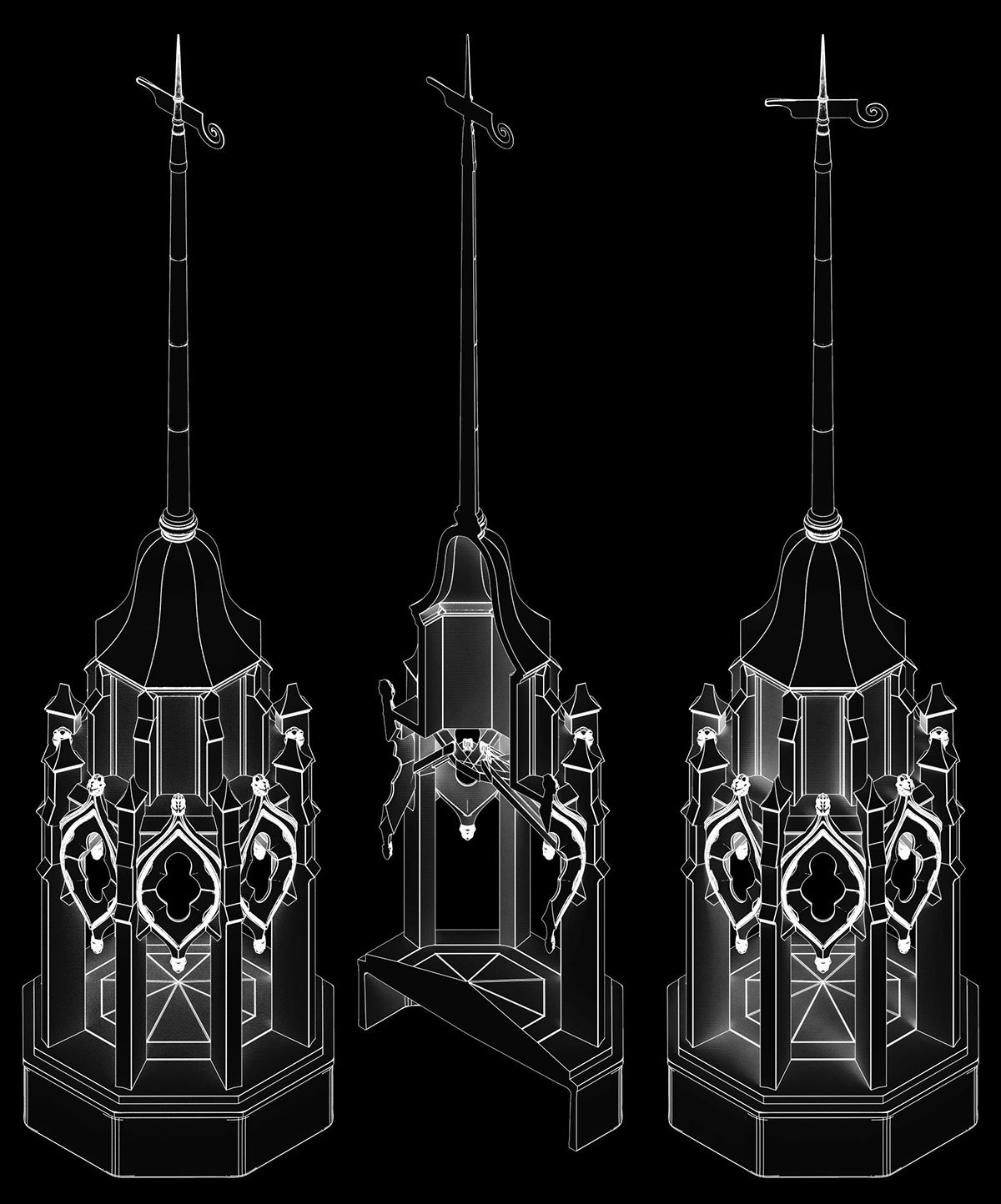

Reconstructed 3D Model of Church Spire from 3D Scan

Reconstructed 3D Model of Church Spire from 3D Scan

Reconstructed 3D Model of Church Spire from 3D Scan

Reconstructed 3D Model of Church Spire from 3D Scan

Reconstructed 3D Model of Church Spire from 3D Scan

Reconstructed 3D Model of Church Spire from 3D Scan


The 3D model's precision and detail were instrumental in guiding the fabrication of structural elements and the ornamental features that define the spire's character. Furthermore, it facilitated the custom crafting of copper sheets, ensuring they seamlessly conformed to the spire's unique contours. This harmonious blend of historical preservation and modern technology by MYND Workshop has set a new benchmark for restoration projects, ensuring the Larchmont Avenue Church spire remains a beacon of heritage and architectural excellence for generations to come.

Michael Robison

Michael Robison, co-founder and CEO of MYND Workshop, brings his architectural expertise and passion for precision to the forefront of 3D scanning and reality capture technologies. With a rich background in AEC and historic preservation, Michael's work spans from New York to Paris, contributing to significant projects with a keen eye for detail and an unwavering commitment to delivering exceptional results.
